SynchronicIT
Headquarters: Netherlands
Region(s) Served: EMEA
SynchronicIT is a team of passionate people whose goal is to improve everyone's life through innovative products using RF technology based on many years of experience in technologies using the ISM bands, BLE and most important Ultra-Wideband (UWB).
We provide precise real time location data using wireless hardware, disruptive software solutions and embedded wireless products to solve your business problems. The main focus is on applications using Ultra-Wideband, where we provide design / development services, off-the-shelf or custom (white-label) products, single or multi-radio modules and consultancy services.
As Co-author of the Omlox core zone standard, we want to open up the RTLS market by providing an open standard allowing interoperable solutions to be implemented with ease. We offer solutions and products at every stage of development, from consultancy to production-ready white-labelled solutions. Our approach is flexible and tailored to meet the unique needs of each customer. Whatever works best for the customer, will work for us too.
Products & Services
Omlox Tag Implementation on Modules
Explore the cutting-edge capabilities of Omlox with our comprehensive tag stack, integration and implementation services. As co-authors of the Omlox Core Zone specification, we specialize in deploying precise Ultra Wideband (UWB) tracking solutions tailored to your unique needs.
Our services encompass a wide range of offerings:
1. Customizable Tag Stacks: We provide customizable tag stacks compatible with DW3xxx / QM33xxx UWB transceivers in combination with leading host chips, including Qorvo, Nordic, ST, Telink, and more. Notably, we offer a specialized stack designed specifically for the DWM3001CDK module, ensuring seamless integration and optimal performance.
2. Flexible Deployment Options: Whether you prefer pre-configured modules or a bring-your-own-device approach, our solutions are adaptable to suit your preferences and requirements.
3. Design Services: Looking to innovate? Our expert team can assist in integrating Omlox into new or existing custom designs, ensuring a perfect fit for your applications.
4. OEM White-Label Infrastructure: Streamline your infrastructure deployment with our OEM white-label solutions, offering quick and efficient time to market and integration into your ecosystem.
5. End-to-End Solutions: From individual PCB modules to full-scale system installations, we deliver comprehensive solutions to enhance and optimize your business operations.
Explore the possibilities of Omlox technology and learn more about our services at https://www.synchronicit.nl.
See https://omlox.com/technology for more details about the standard.
Synchro Fusion RTLS System
UWB / BLE / NFC combined RTLS system
Overall system parameters
- Both Infrastructure and Ad-Hoc based
- Based on propitiatory measurement method using ToF, allowing distance and time difference measurements combined within a tightly scheduled structure.
- Scalability to virtually any size or network structure
- (proven 600+ anchor systems, spread over multiple floors)
- Maximum air time efficiency to allow maximize tag density
- Not zonal based, therefore no boundary side-effects.
- Measurement update rate to be selected per tag, tag group or all tags
- Any mix op update rates, measurement or power savings modes can be combined in a single system
- By default 20 Hz* fastest update rate per tag. No limit on slowest update rate.
- High level of freedom for customer specific optimalizations on system level
- SynchronicIT UWB as main measurement method, UWB TDoA and BLE as alternative and/of fallback depending on user specifications
- Continuous health check of the system including anchor positions are running in the background to guarantee the maximum level of service that can be offered.
UWB subsystem
- Infrastructure based on Anchors as reference, measurement and synchronization points
- Channel, preamble length and Tx power freely configurable to user specifications.
- Wireless and wired data offloading.
- Approx. 1 out of 10 Anchors needs to be connected to ethernet to offload data. Small setups, like theater applications, only a single ethernet connection can be used for up to e.g. 24 anchors.
- Ad-Hoc based system between tags but also tags and anchors is allowed. Moving into the infrastructure area and/or leaving the area is allowed.
Bluetooth LE subsystem
- BLE interaction with tags for reference, measurement and configuration
- Support for iBeacon, Eddystone, Apple/Google Exposure notifications (contact tracing)
- and custom advertisements.
- Used as fallback of the UWB measurements, where battery life is more important than accuracy.
- When both BLE and UWB data is available it will be fused to get the optimal results.
- User applications and/or protocols can be added on request

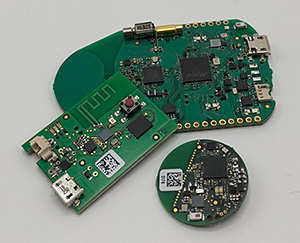

Hardware / Software Engineering Sevices for RF/UWB Applications
Based on SynchronicIT own reference designs in hardware and software, which are already used in existing products, SynchronicIT offers custom integration services. e.g. Exposure Notification services or Nearby Interaction services can be added to your existing product, additional modules / electronics can be integrated. Full product design in software, hardware and mechanics (enclosure) is offered to meet the requirements for high-demanding applications.
Short list of Technologies and reference designs:
- UWB/BLE tags
- UWB/BLE anchors
- UWB AoA anchors in 1 axis and 2 axis
- Mixed RF designs
- Ultra low power sensor platforms
- Sensor Hub / sensor Fusion nodes
Critical components are on stock to allow short development and prototyping periods.
